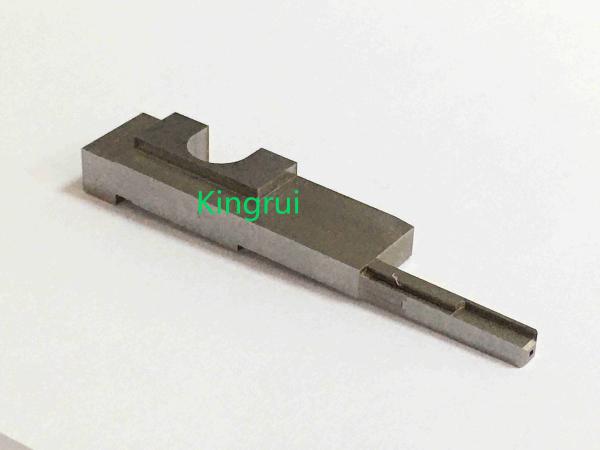

Plastic Injection Mold Components With Customized Connector Mold Parts For Auto Connector Injection Molds
Product Description
| Product name | Precision Custom Machined EDM and Grinding Connector Mold Parts |
| Part material | PD613/ SKD61/ H13/ 1.2344/ M2/ DC53/SHK51, etc. |
| Part size | 0.1g-5kg or as your request |
| Supply ability | 1200-1500 pcs per month |
| Product processing | Grinding, EDM |
| Post process | PVD coating, Polishing, |
| Inspection | 100% inspection before products leave the factory |
| Application | Mainly apply to auto, medical, electrical, electronic, home appliance |
| Processing time | 5-15days according to the drawing qty and complexity |
Material & Industry info
| Material name | Hardness (HRC) | Features | Function | Heat treatment |
| SKD-11 | 58~60HRC | High wear-resisting and purity,have good hardenability and machinability. | Widely used in metal stamping mould parts. | 200℃ |
| SKH-51(HSS) | Above 63 HRC | Very sharpe,a kind of alloy steel have complicated elements, which included tungsten/molybdenum/chromium/vanadium and cobalt carbide forming elements etc., | Used in various of cutting tools / cold-punching mould and / embossing die / Punch head etc., | 860~880℃ |
| DC53 | 62~63HRC | Good hardenability and machinability. | Used in stamping mould/punch head | 520~530℃ |
Parts Details
1)Parts Using
:
Parts are used in plastic molding industry. and they are used in high volume application. It required precision as well as durability, and required features that would enhance the manufacturability of the finished parts. They are designed to allow for frequent change overs during production, while maintaining a high degree of precision.
2)Processing Equipment:
Part are manufactured utilizing our precision surface grinding. Our grinding can keep +/-0.001mm tolerance. and very good Radius clearance, as weel as a high-level surface roughness.
3)Ohter In-house Capabilities:
Precision EDM, including Mitsubishi EDM, Sodick EDM, Fanuc CNC, Mistsbishi FA Wire EDM. Grinding include Surface Grinder, Cylinder Grinder, Centerless Grinder.
4)Measurements:
CMM, Nikon Projectors,Mitutoyo Digital Caliper, Mitutoyo Digital Height Gauge, Rockwell Hardness Inspection Instrument, Microscopes, etc.
Kingurui Competitive Advantage
1. Our experinced desing enginer have been working more than 16 years experience in the precision mold .field. Many Chinese famous stock company use our precision mould and gain good reputation. We keep on stimulus and and design innovative product .
2. Imported high-class material from America, Japan, Sweden, etc. prolong your mould lifespan..
3. Our talent: 30 professional and skilled technicians and 10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM.
4.Our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding.
5. Sodick wire-cutting EDM and one Sodick oil cutting EDM machines, they ensure general tolerance within 0.005mm, flatness verticality and linearity within 0.002mm.
6. ISO 9001:2008 system certificated and operated.
7. Quick response whatever require or after sale and timely delivery
Quality system Management and guarantee your product
Using dimensional and optical inspection equipment, Xiangzhan Precision Mould ensures that the tolerance and dimensional integrity of each part
Kingrui Precision Mould operate ISO 9001:2008 system, committing to continuous process improvement eliminating variability and inconsistency within the manufacturing process.
Kingrui Precision Mould deviate to develop long-term relation with customer through reliable quality; and be a truth worthy strategic partner.
Our Services
- We Specialize in Spare Parts fabrication, Jigs & Fixtures etc.
- We Fabricate Tungsten Carbide and Tool Steel Parts According to Drawings.
- We Deliver Urgent Parts in 24 Hours Depending on the Complexity of the Drawing.
FAQ
Q: Does your company make mold parts ?
A: Yes, we are manufacturer with about two decades of mold parts experience.
Q: What’s the software you will use to check the drawing? And what’s format of drawing you can check?
A: Our engineers all use AUTO CAD and Soliworks software to check 2D and 3D drawings.
We can check the drawings with PDF, AI, DWG (CAD) and STP (3D) or IGS (3D) formats.
Q: How to pack the moulds and products?
A: For moulds, we will be coated one-layer anti-rust oil first, and then also will be covered PE film covered first, Plastic box, then carbon last.And as to products, we will pack into standard export cartons or as per customer’s.
Look forward to hearing from you here !
